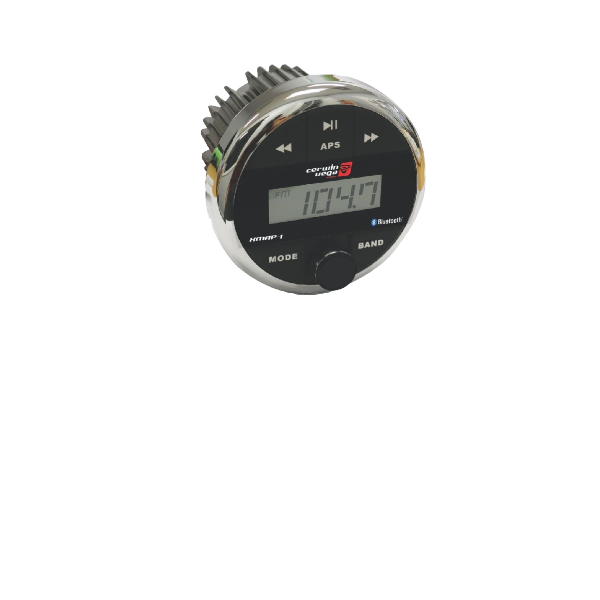

XMAP-1 – Cerwin Vega – RPM XED 3″ In-Dash Gauge Mount Audio Player
R5995,00 Inc Vat.
Description
IP66 Splash Proof LED Display with Clock
3” In-Dash Gauge Mount
FM/AM Radio
USB Input
AUX RCA Input
Bluetooth Function
Front/Rear RCA Outputs
4X40W RMS Max Power Output
Over-all Diameter : 4.45” / 113mm
Mounting Depth : 2.75” / 70mm
Cut-Out Diameter : 3.75” / 94.5mm
Note: The unit’s USB port does not support Apple iPod/iPad, Android Smartphones/tablets, or USB hubs.
Overview
XMAP-1 -RPM XED 3″ In-Dash Gauge Mount Audio Player
Specifications
| Description | XED 3” Mount Audio Player |
|---|---|
| Nominal Impedance (ohms) | N/A |
| Max Power Rating | 4X40W |
| Frequency Response | 20Hz – 20KHz |
| Power Handling (RMS/Peak) | 320 Watts Peak Power |
| Power | DC +12 Volt Battery |
| Distortion – S/N Ratio (A weight @ 1W) | >55dB |
| Cut-out Diameter | 3.75” (95.25mm) |
| Over-All Diameter | 4.45” (113mm) |
| Mounting Depth | 2.75” (70mm) |
